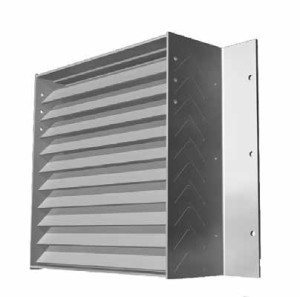

FEMA Louvers are engineered to meet the stringent requirements of FEMA 361 (Third Edition) and ICC 500-2014 for storm shelters and safe rooms. AWV offers two high-performance models—LE-F5 and LF-F8—
| Model | Description | Orientation H – Horz, V – Vert |
Angle Deg. | Spacing Inches | Depth Inches | Sq. Ft. | % | Water Penetration Rating (WPR) Feet/minute |
Pressure Drop @ WPR inches W.C. |
Air Flow SCFM | Material Thickness (Frame/Blade) Inches |
AMCA | Miami Dade | Sight Proof | Min W x H Inches | Max W x H Inches |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LE-F5 | FEMA | H | – | – | 5.50 | 7.89 | 49.3 | 1250 | – | – | 0.25 / 0.25 | Y | – | – | 12 x 12 | 90 x 90 Continuous wide 78 x 99 Continuous high |
| LF-F8 | FEMA | H | – | – | 8.00 | 8.47 | 53 | 1250 | – | – | 0.25 / 0.25 | Y | – | – | 12 x 12 | 96 x 96 Continuous wide 76 x 120 Continuous high |
Notes:
AMCA certified performance based on 4” x 4” louver
Standard construction designed for 25 PSF (100 mph) wind load for maximum single panel size
