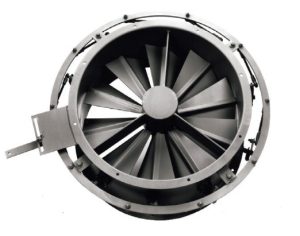

Inlet Vane

Inlet Vanes are designed for applications requiring reduction of expended power and wear on heavy duty fans.  The inlet vanes pre-spin the air in the direction the fan blades are moving thus reducing energy consumption by the fan motors

Configurations

Multi-blade (for balancing)

Onshore / Offshore Applications

General processing in flue gas, automotive industry, dilution air and oven recirculation applications

Design Criteria

Maximum Temperature:

• 500 Degrees Fahrenheit

Maximum Pressure:

• 105”+ w,g,

Maximum Face Velocity:

• 9,500 fpm

Material of Construction:

• Galvanized
• Aluminum
• 304 or 316 Stainless Steel
• Carbon Steel

Bearing Types:

• Oil Impregnated Bronze
• Sleeve Bearings
• 316 Stainless Steel Sleeve
• Bearings
• Plated  Steel Relubricable Ball Bearings
• Stainless Steel Relubricable Ball Bearings
• Carbon Graphite Sleeve Bearings

Blade & Jamb Seals:

• Vinyl
• Silicone
• EPDM
• Stainless Steel
• Neoprene (Ameriprene)
• Ceramic

Actuators:
Manual gear, electric or pneumatic actuators: Two-position or modulating; various types based on customer specifications; cycle-tested with a damper three times as a standard; mounted solenoid valves, positioners and/or limit switches if required

Finishes:

• Sandblast surface prep (SSPC-S3, S6 or S10)
• Air dry enamel (to match a specific color)
• Epoxy
• High-temperature enamel
• Available in various Models to meet your specific requirements.
