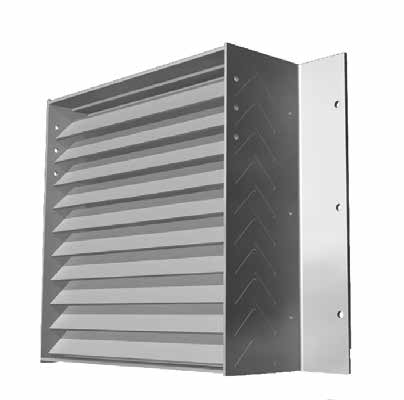

FEMA Louvers are engineered to meet the stringent requirements of FEMA 361 (Second Edition) and ICC 500-2008 for storm shelters and safe rooms. AWV offers two high-performance models—LE-F5 and LF-F8—available in different frame depths and constructed from aluminum or steel. These louvers provide maximum protection against extreme wind and impact conditions, making them ideal for use in critical life-safety applications.
| Model | Description | Blade | Frame | Free Area | Water Penetration Rating (WPR) Feet/minute |
Pressure Drop @ WPR inches W.C. |
Air Flow SCFM |
Material Thickness (Frame/Blade) Inches |
Certification Rating | Single Panel Size | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Orientation H - Horiz. V - Vert. |
Angle Deg. |
Spacing Inches |
Depth Inches |
Sq. Ft. | % | AMCA | Miami Dade |
Sight Proof |
Min W x H Inches |
Max W x H Inches |
||||||
| LE-F5 | FEMA | H | - | - | 5.50 | 7.89 | 49.3 | 0.25 / 0.25 | Y | - | Y | 12 x 12 | 90 X 90 Continuous wide 78 X 90 Continuous high |
|||
| LF-F8 | FEMA | H | - | - | 8.00 | 8.47 | 53 | 0.25 / 0.25 | Y | - | Y | 12 x 12 | 96 X 76 Continuous wide 76 X 120 Continuous high |
|||
