Diffusers

Individually adjustable air deflectors allow an infinite number of air patterns and areas of coverage.  The differing air pattern deflectors have minimal effect on scfm delivered or static pressure requirements

Diffusers are typically mounted at duct outlets, to disperse air in multiple directions. Available in 2-way and 4-way
configurations, each blade is individually adjustable to provide precise control.

Configurations

Single Thickness or Teardrop-Style Blades

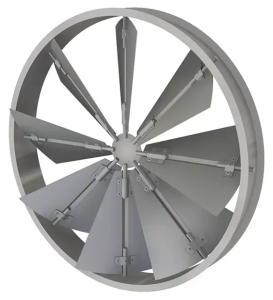

Rectangular or Round Construction

Onshore / Offshore Applications

Ventilation & Air Conditioning Duct Outlets in large industrial
areas, Automotive Plants, Manufacturing Plants, Industrial and
Commercial HVAC Systems

Design Criteria

Maximum Temperature:

• 250 Degrees Fahrenheit

Maximum Pressure:

• 4” w,g,

Maximum Face Velocity:

• 3,000 fpm

Material of Construction:

• Galvanized
• 304 or 316 Stainless Steel
