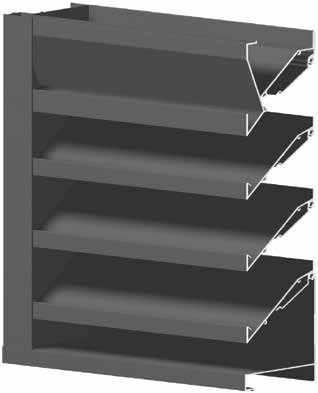

Combination louvers blend the aesthetics of a fixed front blade with the functionality of a hidden adjustable rear blade, providing airflow control without compromising exterior sightlines. Available in a variety of frame depths, blade angles, and spacings, all models are constructed from extruded aluminum and feature drainable or non-drainable fixed blades. These louvers are ideal for applications requiring modulation while maintaining a clean architectural appearance. Manual, electric, or pneumatic actuators can be added for automatic operation.
| Model | Description | Blade | Frame | Free Area | Water Penetration Rating (WPR) Feet/minute |
Pressure Drop @ WPR Inches W.C. |
Air Flow SCFM |
Material Thickness (Frame/Blade) Inches |
Certification Rating | Single Panel Size | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Orientation H - Horiz. V - Vert. |
Angle Deg. |
Spacing Inches |
Depth Inches |
Sq. Ft. | % | AMCA | Miami Dade |
Sight Proof |
Min W x H Inches |
Max W x H Inches |
||||||
| LE-32C | Combination Drainable | H | 37.5 | 4.00 | 6.00 | 8.19 | 51 | 1250 | 0.15 | 10240 | 0.125 / 0.081 | Y | Y | - | 12 x 12 | 60 x 96 |
| LE-45C | Combination Drainable | H | 40.0 | 4.00 | 4.00 | 6.78 | 42 | 1250 | 0.17 | 8475 | 0.081 / 0.081 | Y | - | - | 12 x 12 | 60 x 96 |
| LE-64B | Combination Drainable | H | 30.0 | 5.00 | 6.00 | 7.04 | 44 | 1039* | 0.12 | 7315 | 0.081 / 0.081 | - | - | - | 12 x 12 | 96 x 96 |
| LE-65C | Combination Drainable | H | 37.5 | 4.00 | 6.00 | 8.19 | 51 | 1250 | 0.15 | 10240 | 0.081 / 0.081 | Y | - | - | 12 x 12 | 60 x 96 |
| LE-66C | Combination Drainable | H | 45.0 | 6.19 | 6.00 | 6.46 | 40 | 1250 | 0.20 | 8075 | 0.081 / 0.081 | Y | - | - | 12 x 16 | 48 x 96 |
