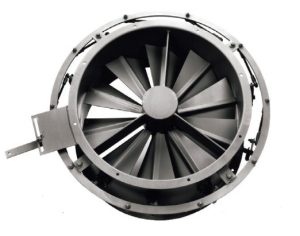

Inlet Vanes are designed for applications requiring reduction of expended power and wear on heavy duty fans.  The inlet vanes pre-spin the air in the direction the fan blades are moving thus reducing energy consumption by the fan motors

Configurations

Multi-blade (for balancing)

Onshore / Offshore Applications

General processing in flue gas, automotive industry, dilution air and oven recirculation applications

Maximum Temperature:

500 Degrees Fahrenheit

Maximum Pressure:

105”+ w,g,

Maximum Face Velocity:

9,500 fpm

Material of Construction:

Galvanized

Aluminum

304 or 316 Stainless Steel

Carbon Steel

Bearing Types:

Oil Impregnated Bronze Sleeve Bearings

316 Stainless Steel Sleeve Bearings

Plated  Steel Relubricable Ball Bearings

Stainless Steel Relubricable Ball Bearings

Carbon Graphite Sleeve Bearings

Blade & Jamb Seals:

Vinyl

Silicone

EPDM

Stainless Steel

Neoprene (Ameriprene)

Ceramic

Actuators:

Manual gear, electric or pneumatic actuators: Two-position or modulating; various types based on customer specifications; cycle-tested with a damper three times as a standard; mounted solenoid valves, positioners and/or limit switches if required

Finishes:

Sandblast surface prep (SSPC-S3, S6 or S10)

Air dry enamel (to match a specific color)

Epoxy

High-temperature enamel

Available in various Models to meet your specific requirements.

Contact Ochoa Industries to assist selecting the proper Damper for your application.
